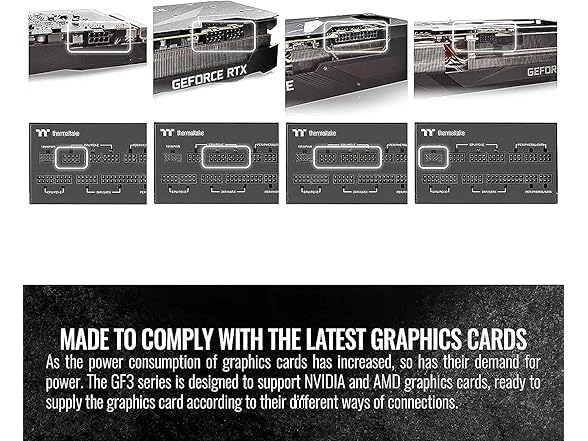

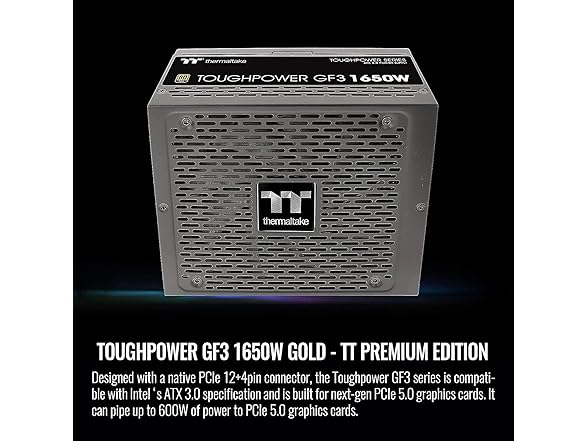

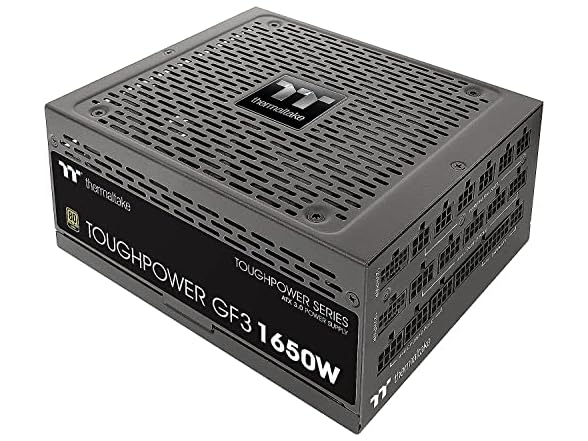

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards. Capable of delivering up to 600W of power to PCIe 5.0 graphics cards. •P/N: PS-TPD-1650FNFAGU-4 •WATTS: 1650W •MODEL: TPD-1650AH3FSG •MAX. OUTPUT CAPACITY: 1650W •COLOR: Black •DIMENSION ( W / H / D ): 150mm(W) x 86mm(H) x 180mm(D) •WEIGHT: 2.14 KG •PFC (POWER FACTOR CORRECTION): Active PFC •POWER GOOD SIGNAL: 100-250 msec •INPUT CURRENT: 20 – 16A •INPUT FREQUENCY RANGE: 50-60Hz •INPUT VOLTAGE: 100 – 240V~ •OPERATING TEMPERATURE: 0°C to + 50°C •OPERATING HUMIDITY: 20% to 90%,non-condensing •STORAGE TEMPERATURE: -40°C to + 70°C •STORAGE HUMIDITY: 20% to 95%, non-condensing •COOLING SYSTEM: 14cm hydraulic bearing fan •EFFICIENCY: Meet 80 PLUS®Gold at 115Vac input. •MTBF: 100,000 hrs minimum •SAFETY APPROVAL: •CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/BIS/KCC •PCI-E 6+2PIN: 9 •PCIE 12+4PIN: 2.
- Fully Compatible With Intel PSDG ATX 3.0 Specifications

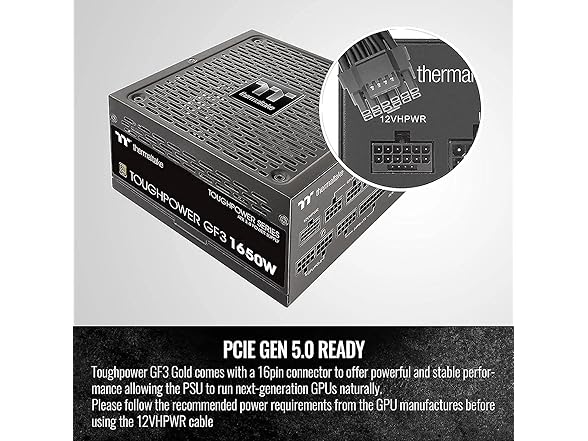

- PCIe Gen 5.0 Ready
- 100% High Quality Japanese 105°C/221°F Capacitors

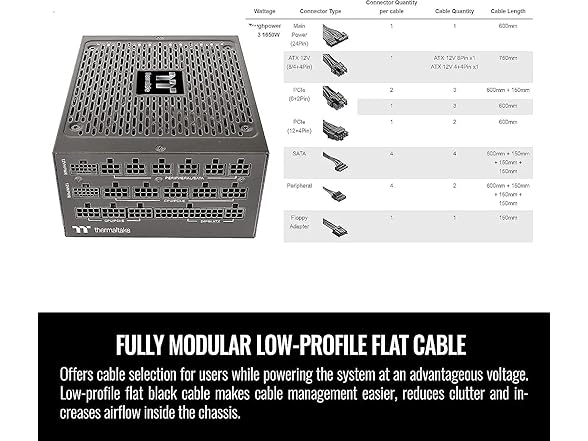

- Fully Modular Low-Profile Flat Cable

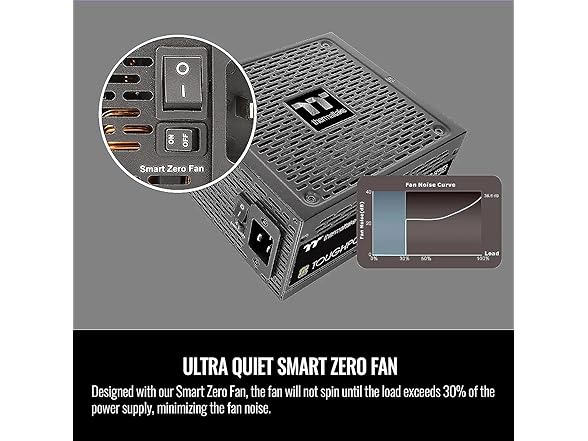

- Ultra Quiet Smart Zero Fan
